Special Order Item

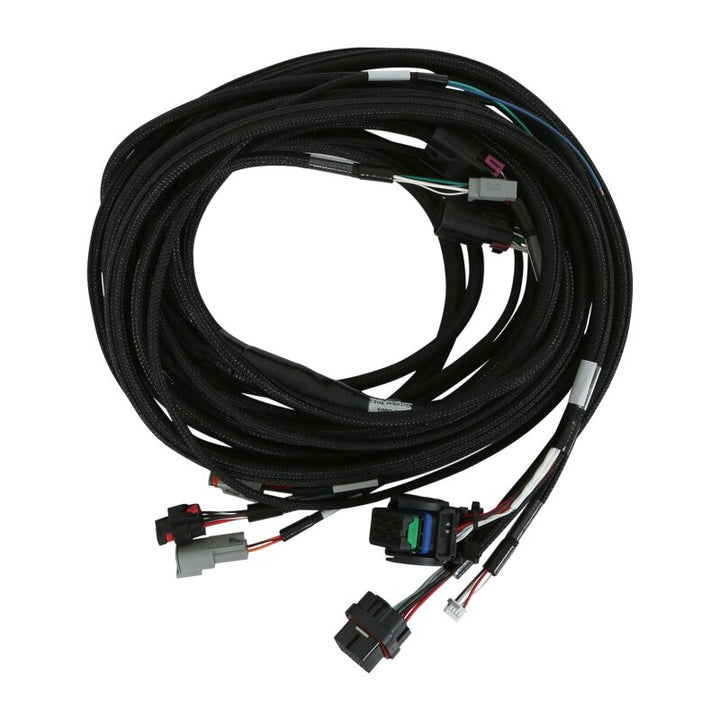

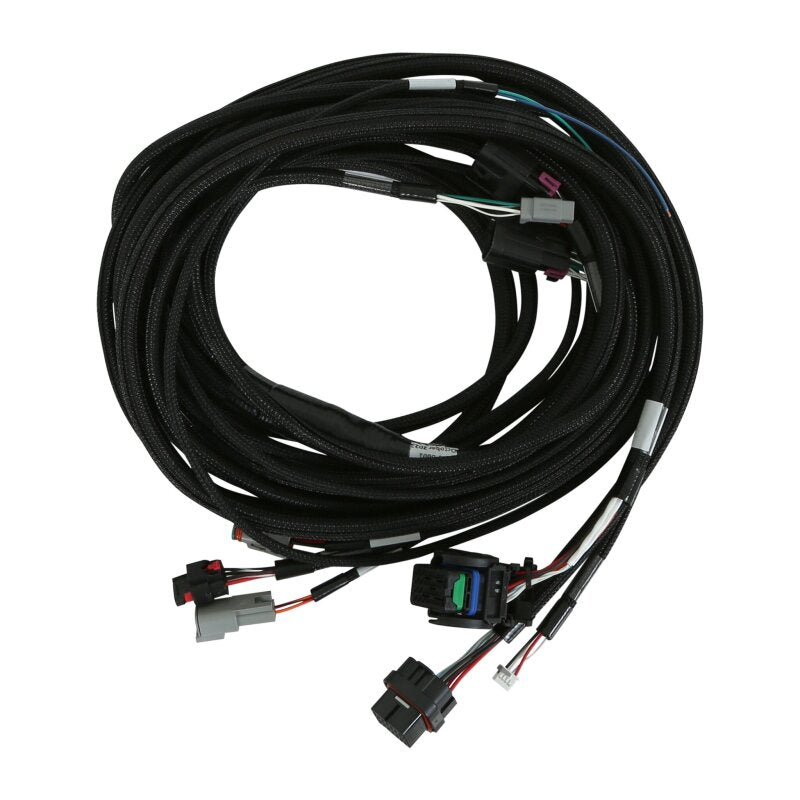

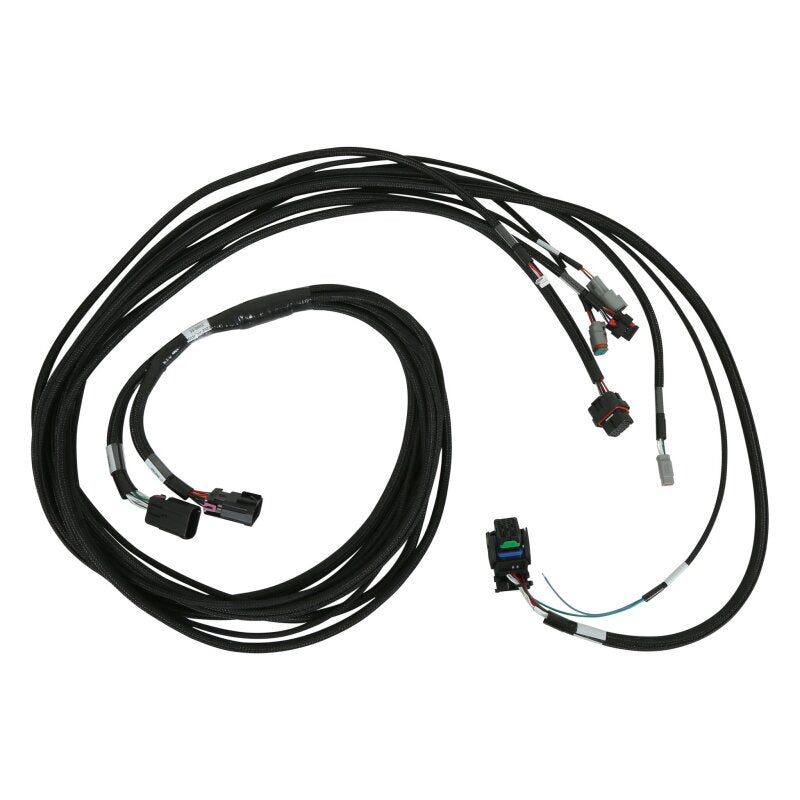

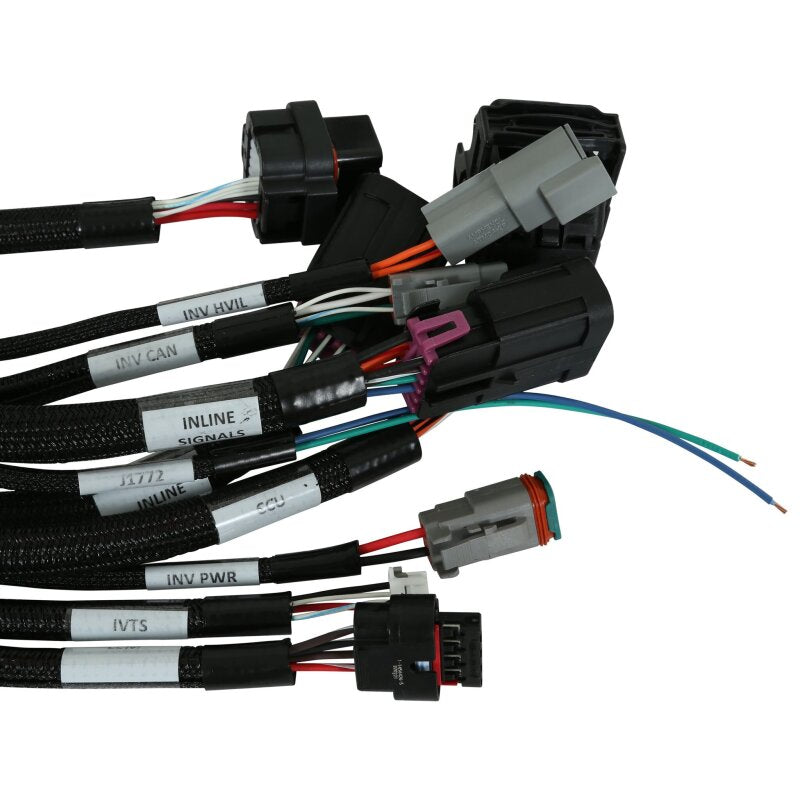

This low voltage harness assembly was designed to be installed in the rear half of the electric vehicle. It was designed to be used with a mating front half assembly that is VCU hardware specific. The AEM part number for the mating front half harness is 30-8600.
Installation Instructions- - Life Energy Motion (LEM) - current voltage DHAB s/124 Transducer Sensor
- Isabellenhutte (IVTS) - current voltage shunt based measuring system
- J1772 Flying Leads - Proximity Pilot (PROX) and Control Pilot (CP)
- Inverter High-Voltage Interlock (HVIL)
- Connector interface features include:
- Power Distribution Unit (PDU)
- Combined Charging Unit (CCU)
- Inverter Power (INV PWR)
- Inverter CAN (INV CAN)
- Inline Signals
- Inline CAN
